| Items/Model | TS10(PLC) | TS20(PLC) | TS30(PLC) | TS50(PLC) | |
| Burn Rate (Average) | 10 kg/hour | 20 kg/hour | 30 kg/hour | 50 kg/hour | |
| Control Mode | PLC | PLC | PLC | PLC | |
| Combustion Chamber | 100L | 210L | 330L | 560L | |
| Internal Dimensions | 50x50x40cm | 65x65x50cm | 75x75x60cm | 100x80x70cm | |
| Secondary Chamber | 50L | 110L | 180L | 280L | |
| Smoke Filter Chamber | Yes | Yes | Yes | Yes | |
| Feed Mode | Manual | Manual | Manual | Manual | |
| Voltage | 220V | 220V | 220V | 220V | |
| Power | 0.5Kw | 0.5Kw | 0.5Kw | 0.7Kw | |
| Diesel Oil Consumption (kg/hour) | 8.4 | 10.9 | 13.3 | 16.9 | |
| Natural Gas Consumption (m3n/hour) | 10.1 | 13 | 16 | 20.2 | |
| Temperature Monitor | Yes | Yes | Yes | Yes | |
| Temperature Protection | Yes | Yes | Yes | Yes | |
| Oil Tank | 100L | 100L | 100L | 100L | |
| Feed Door | 30x30cm | 45x40cm | 55x50cm | 70x55cm | |
| Chimney | 3Meter | 3Meter | 5Meter | 5Meter | |
| Chimney Type | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |
| 1st. Chamber Temperature | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | |
| 2nd. Chamber Temperature | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ | |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | |
| Gross Weight | 1500kg | 2200kg | 3000kg | 4500kg | |
| External Dimensions | 140x90x120cm | 160x110x130cm | 175x120x140cm | 230x130x155cm | |
Capacity (burning rate per hour)
Operation
Operating Temperature Primary
Secondary temperature
Fuel
Average fuel consumption
Type
Power Supply
Installation Area Available
Loading system
INCINERATOR DETAILS

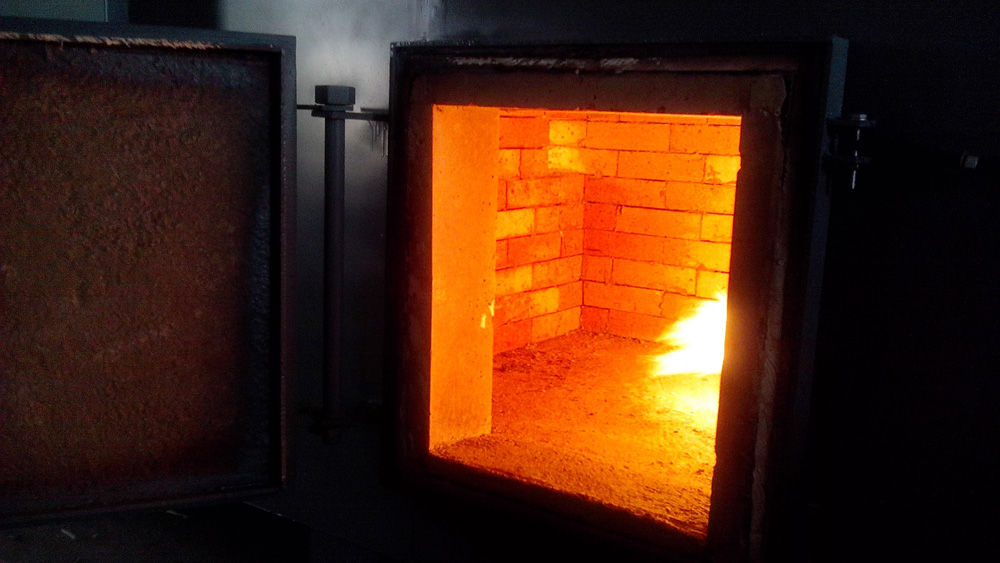

Charging door
Ash door
Dual BurnersDestroy the wasted materials or chemical uses in pharmaceuticals through Primary & Secondary combustion chambers with working temperatures are 850° C & 1100° C or 1200° C & 1400° C.
Feeding system
Automatic/ and manual control system
Automatic heating control system
Easy maintenance
Outdoor type IP grade material
Heat recovery system
Low fuel consumption system
Combustion chamber dual type with heat recovery system
Burner system with economizer / low fuel method
Scrubbing system as per regulation
Easy dust collecting system
Skid Mounted Incinerator capable of withstanding up to 1400 Degree Centigrade.
Hospital generates 2000kg per day Wastes generated includes pathological waste, infectious waste, pampers, gloves, bandages and gauzes, pharmaceutical waste, sharp waste, vials and Laboratory waste including formalin.
Minimum 250Kg/hr
Continuous
Minimum 750ºC
1350ºC maximum
Diesel and Gas
Not more than 45 litres per hour
Double chamber
440V, 50Hz, 3 phase
6.12Mt.x 4.76Mt. approx.
Automatic loading (Top loading)
Minimum 0.73 Mt (W)x 0.63mt(H) with hinged refractory lined:
Any size with hinged refractory lined:
Dual burners for Diesel and natural gas.
Natural gas quality standards limit/range attached
a)Castable refractories high alumina capable of withstanding 1400 degree centigrade.
Fully automatic
Negative pressure
Maximum 600 litres with inspection cover drain valve, gauge and pipe lines and pump
2 seconds
